• 본 문서는 VMware에서 가상으로 구축했다.
• Ubuntu 22.04 Jammy Jellyfish
• Openstack Caracal (24.02)

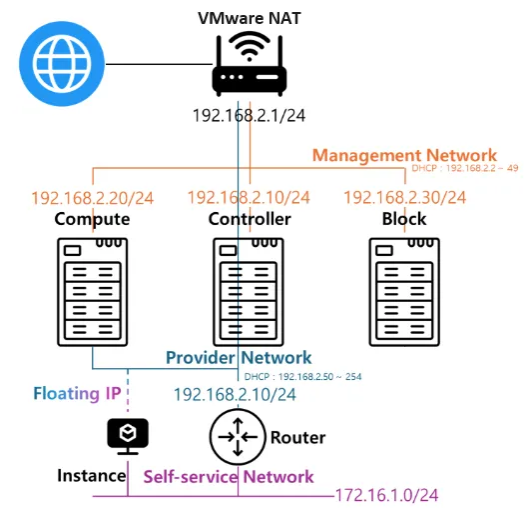

Network Setting

---

Management(VMnet18)

- NAT

- 192.168.2.0/24 : 192.168.2.10 ~ 192.168.2.20

- DHCP

Provider(VMnet18)

- NAT

- 192.168.2.0/24 : 192.168.2.50 ~ 192.168.2.254

- NO-DHCP

Self-Service (가상..)

--dns-nameserver 8.8.4.4 --gateway 172.16.1.1 \
	--subnet-range 172.16.1.0/24 selfservice

사실 Management Network는 내부 관리를 위한 네트워크이지만, 설치할 땐 인터넷이 필요하므로 NAT로 설정함.

Provider Network의 경우 외부에 인스턴스 서비스를 제공해야 하기 때문에 NAT를 쪼개서 할당함



Overview

---

Controller

- NIC

Interface Name	IP	Type
ens33	192.168.2.10/24	Management Network
ens34	-	Provider Network

- Service

Service Name	Desc.
Keystone	Authentication
Glance	Image Server
Placement	-
Nova	Compute
Neutron	Network
Cinder	Block Storage
Swift	Object Storage
Horizon	Dashboard

Compute

Interface Name	IP	Type
ens33	192.168.2.20/24	Management Network
ens34	-	Provider Network

Service Name	Desc.
Nova	Compute
Neutron	Network

Block

Interface Name	IP	Type
ens33	192.168.2.30/24	Management Network

Service Name	Desc.
Neutron	Network
Cinder	Block Storage
Swift	Object Storage
